Keychain

Top  Previous  Next

This plugin allows you to explore the Keychain data such as Apple ID passwords, Wi-Fi passwords, mail account passwords, credit card information, etc.



NOTE: This plugin is only available for iCloud synced data downloaded by EPB.



NOTE: To unmask passwords, card numbers, tokens and hash values, clear the Mask Passwords in Keychain option in the Settings.



The data in the Keychain plugin is divided into the following categories:

Apple Id: information about Apple Ids

Wi-Fi accounts: information about Wi-Fi accounts

Mail accounts: information about the mail accounts

Browser passwords: information about the web forms passwords

Credit cards: information about the credit cards

DSIDs & Tokens: information about destination signaling identifiers and tokens

All: detailed information about all keychain data



For Apple Id, the following is displayed:

Name

Creation date (UTC): date and time

Modification date (UTC): date and time

Apple ID

Password

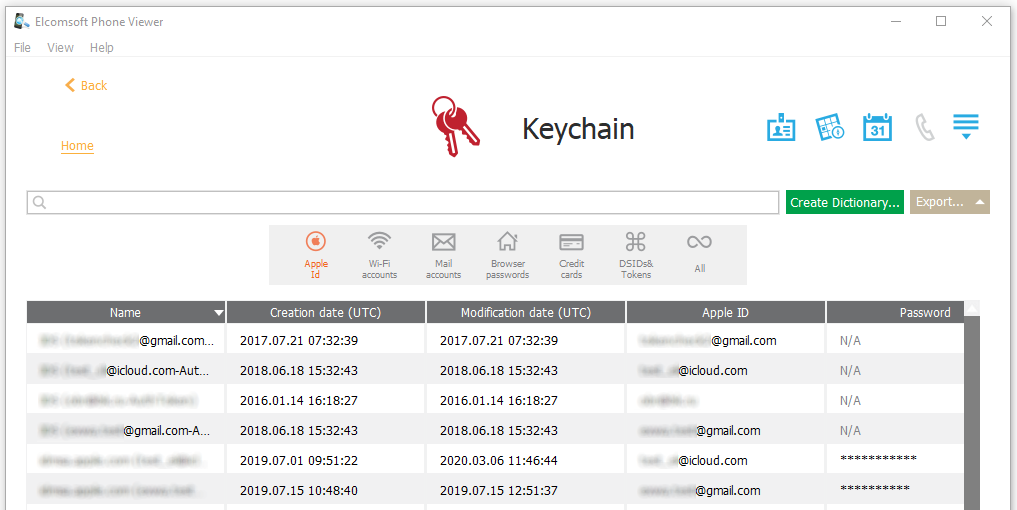

Keychain_Apple_ID



For Wi-Fi accounts, the following is displayed:

Creation date (UTC): date and time

Modification date (UTC): date and time

SSID

Password

PTK-Hash: hash values

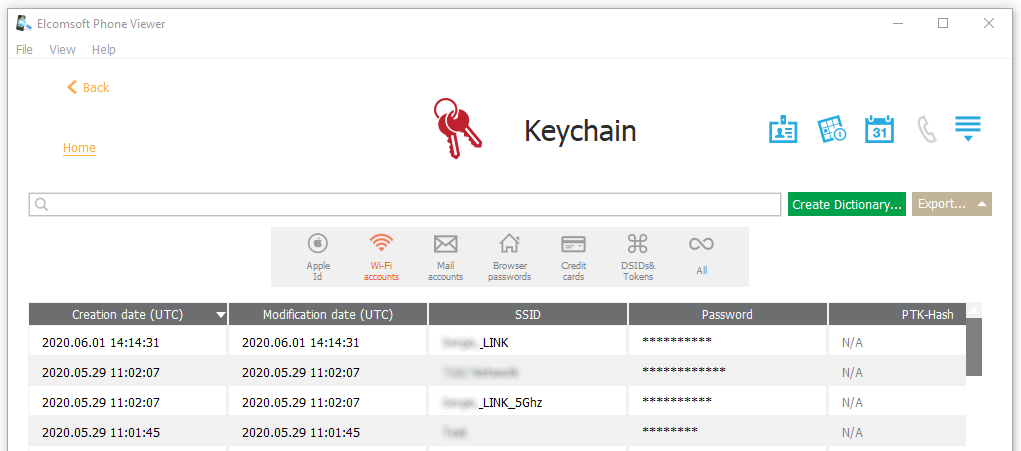

Keychain_Wi-Fi_accounts



For Mail accounts, the following is displayed:

Name

Creation date (UTC): date and time

Modification date (UTC): date and time

Protocol

Account: mail account name

Password

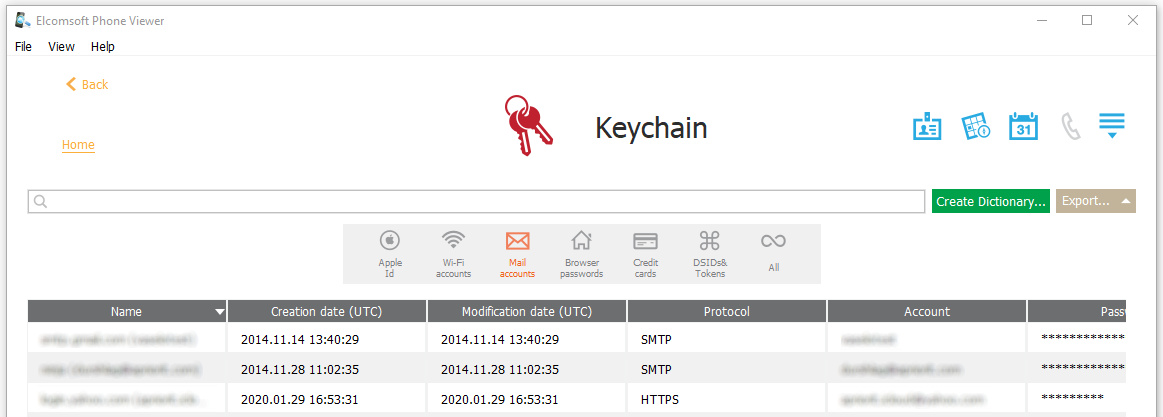

Keychain_mail_accounts



For Browser passwords, the following is displayed:

Name

Creation date (UTC): date and time

Modification date (UTC): date and time

Address: web address

Account

Password

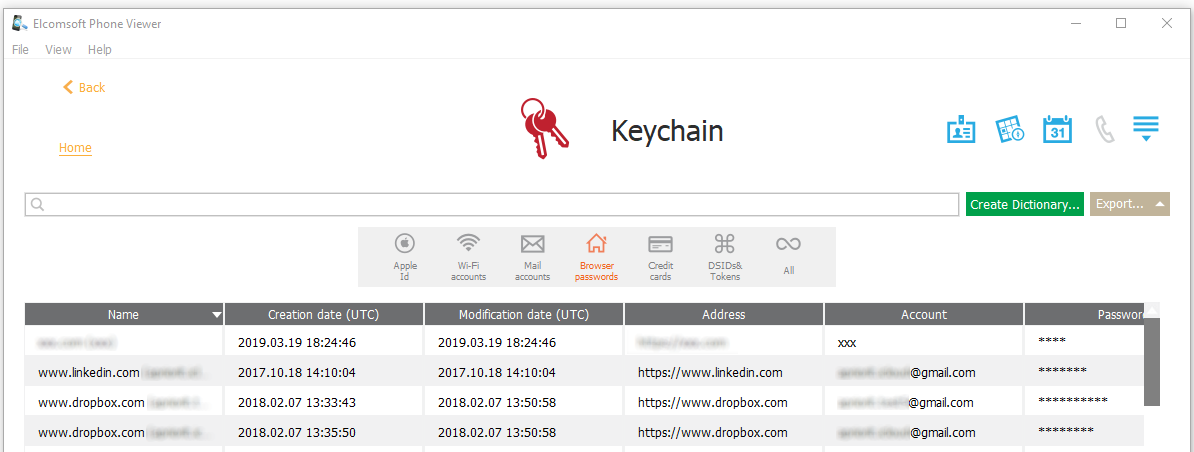

Keychain_browser_passwords



For Credit cards, the following is displayed:

Card name

Cardholder name

Card number

Expiration date (UTC): date

Creation date (UTC): date and time

Modification date (UTC): date and time

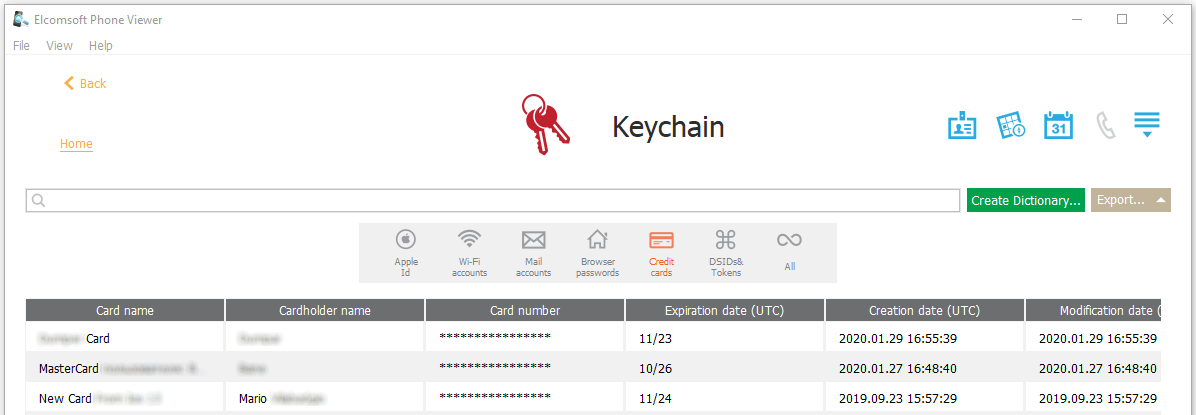

Keychain_credit_cards



For DSIDs & Tokens, the following is displayed:

Name

Creation date (UTC): date and time

Modification date (UTC): date and time

Token

DSID

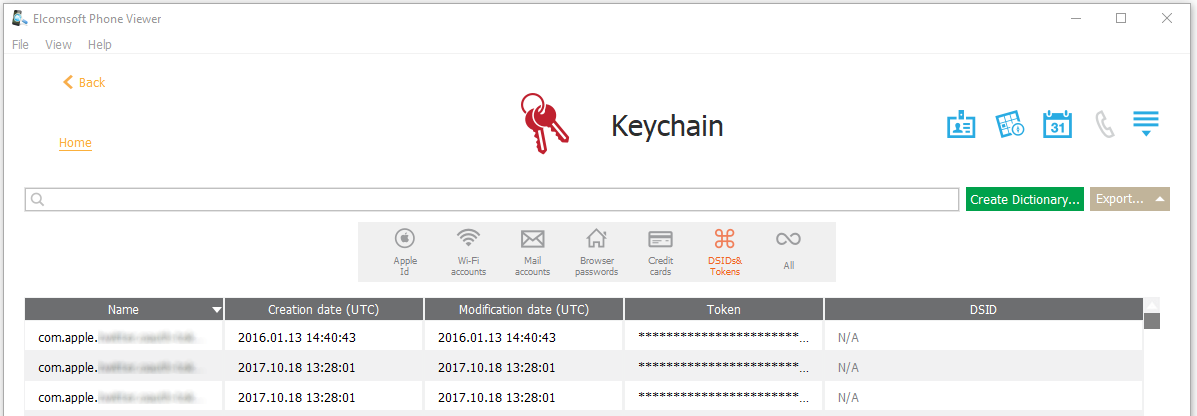

Keychain_DSID



The All category contains a list of all keychain data. For every list item (depending on its type), you can find the following information including, but not limited to:

Account

Address

Access Group

Authentication Type

Key Size in Bits

Decryption

Derivation

Encryption

Application label

Label

Permanence

Digital Sign

Unwrapping

Wrapping

Creation Date (UTC)

Description

Invisible

Protection Class

Modification Date (UTC)

Path

Port

Protocol

Server

Data: password

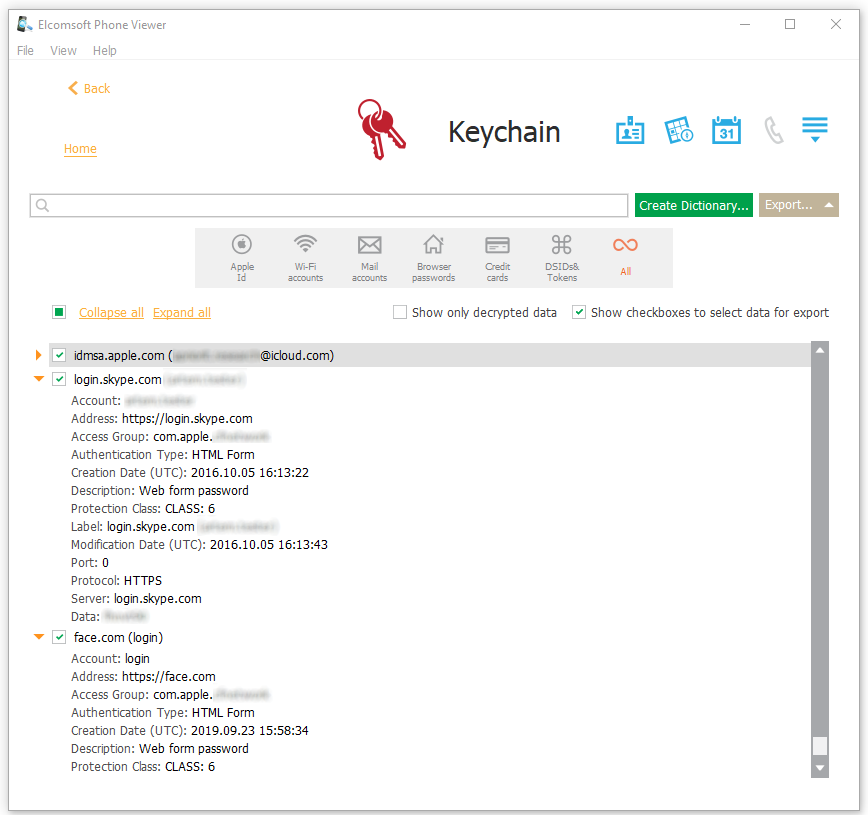

Keychain_All





The following options are available in the All category:



Collapse all allows collapsing the detailed information about all items in the list



Expand all allows expanding the detailed information about all items in the list



ClickKeychain_All_category_ controlto expand or collapse the detailed information about the certain item in the list



Show only decrypted data option allows viewing the decrypted data only



Show checkboxes to select data for export allows selecting the data for export.





Creating Dictionary



EPV allows you to create a dictionary of the passwords found in the keychain.



To create a dictionary, do the following:

1. Click Create Dictionary.

2. The Select destination file window opens.

3. In the opened window, select the location to which the file with the passwords will be saved and enter the file name.

4. Click Save.

5. The <file name>.txt file is saved to the selected location.





Exporting Keychain Data



To export data, do the following:

1.Click Export.

2.Select one of the following values from the drop-down list: Selected or All.

3.The Select destination file window opens.

4.In the opened window, select the location to which the file with exported data will be saved and enter the file name.

5.Click Save.

6.The <file name>.xml file is saved to the selected location.



Searching



To perform searches in Keychain, enter the search request in the search field and press Enter. The search results will be highlighted in yellow. The number of search results will be displayed in the search field. Use the navigation arrows to navigate between the search results.
